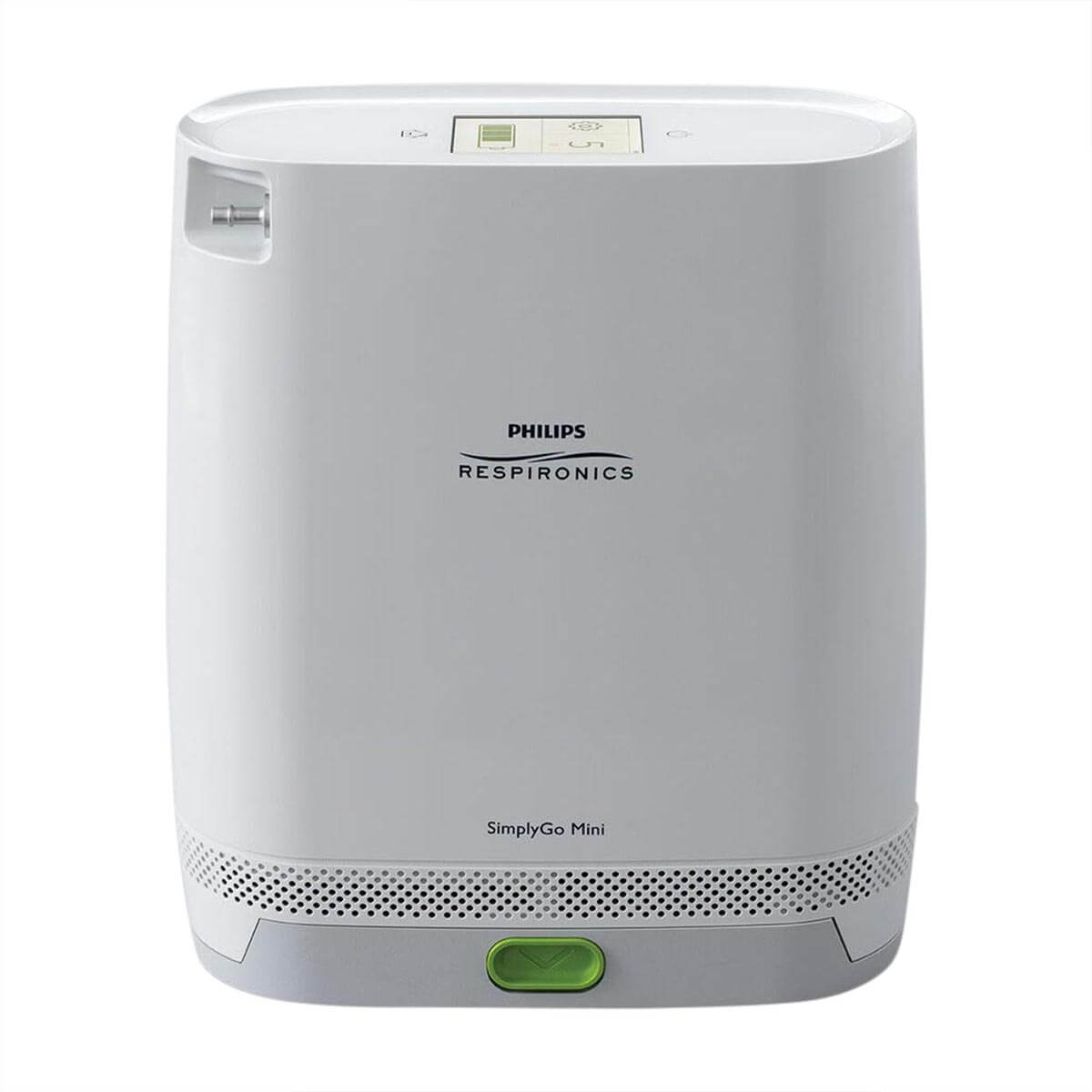

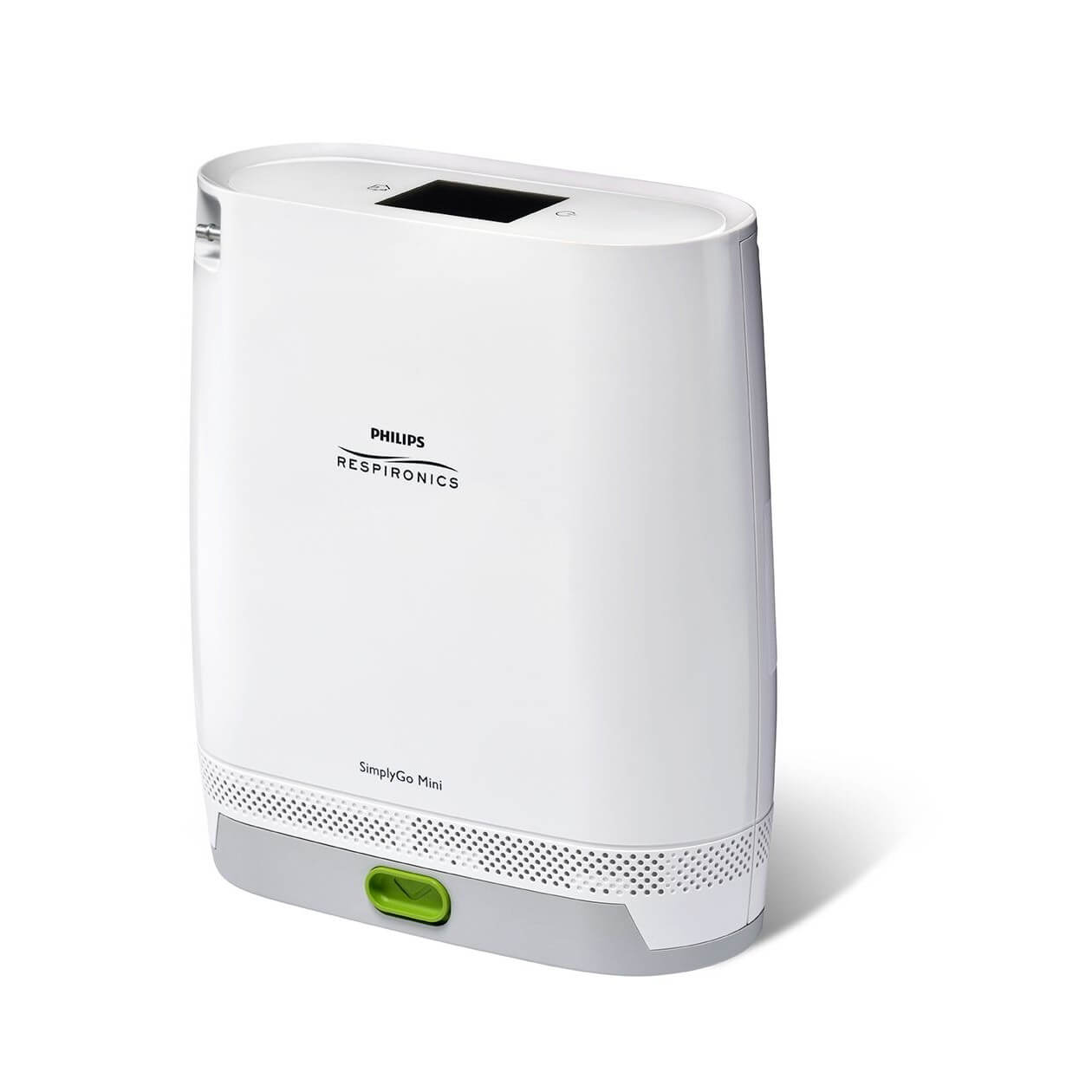

PHILIPS RESPIRONICS SIMPLYGO MINI PORTABLE CONCENTRATOR

The SimplyGo Mini Oxygen Concentrator is the newest, smallest, and lightest member of the Right Fit portfolio of oxygen products from Philips Respironics. This SimplyGo portable oxygen concentrator is designed and rigorously tested to be reliable and durable in real-world environments, undergoing the same testing regimen as its counterpart, the proven SimplyGo POC.

Small yet Powerful

A newly developed smallest and lightest SimplyGo Mini Portable Oxygen Concentrator (POC) that delivers more oxygen than its competitor almost twice its weight. The mini oxygen concentrator is designed for active users' demand for a POC, with true reliability, ruggedness, and attractive features.

Philips Respironics SimplyGo Mini Portable Oxygen Concentrator has undergone a testing regimen that was subjected to certifiable conditions including effects, vibrations, and temperatures to convey reliable performance day in and day out. Oxygen is the second most abundant component in the world's climate which encourages humans and creatures. Oxygen likewise encourages ignition, in spite of the fact that oxygen itself is a protected gas and non-combustible. At a point when in an inflammable area or smoky environment, our ultimate SimplyGo Mini Portable Oxygen Concentrators provide the user with a level of opportunity in portability that may not generally be conceivable by supplying oxygen-enriched air directly to the respiratory system.

Features

Attractive and sleek design
Easy-to-remove external battery
Light weight – 5.0lbs / With extended Battery is 6 lbs

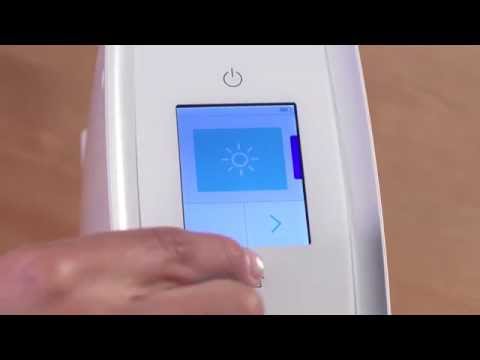

Intuitive, easy-to-read screen

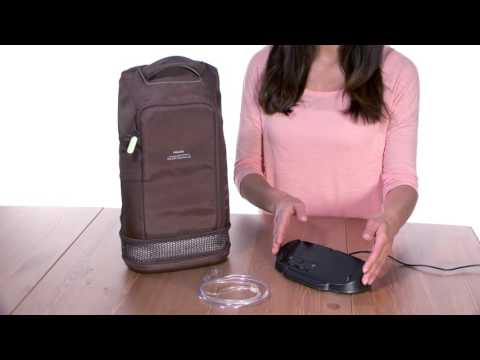

Strong, comfortable carrying case
Distills air consistently from the environment
Expunge nitrogen to convey oxygen-rich air

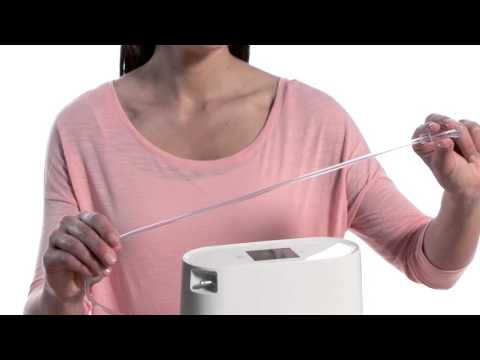

Provides cleaned oxygen by means of nasal cannula
Powered by a rechargeable battery or any AC or DC force source.
Avoid any open blazes in the vicinity of oxygen utilization. This would incorporate matches, cigarette lighters, candles, or smoking in any structure. On the off chance that anybody wishes to smoke while you are utilizing a Portable Oxygen Concentrator, benevolent demand that they venture outside or out of the scope of you and the unit.
Exercise alert around different wellsprings of warmth, for example, compact electric or gas radiators, and additionally broilers and stoves. Keep no less than five feet between such wellsprings of warmth and POC oxygen sources.
Avoid utilizing petroleum-based moisturizers or creams but instead utilization water-based items.
Strictly follow the safety and security directions provided on it.
Always counsel our group of exceedingly expert doctors and health care providers to build up an arrangement that you are alright with or on regions you are not cleared.

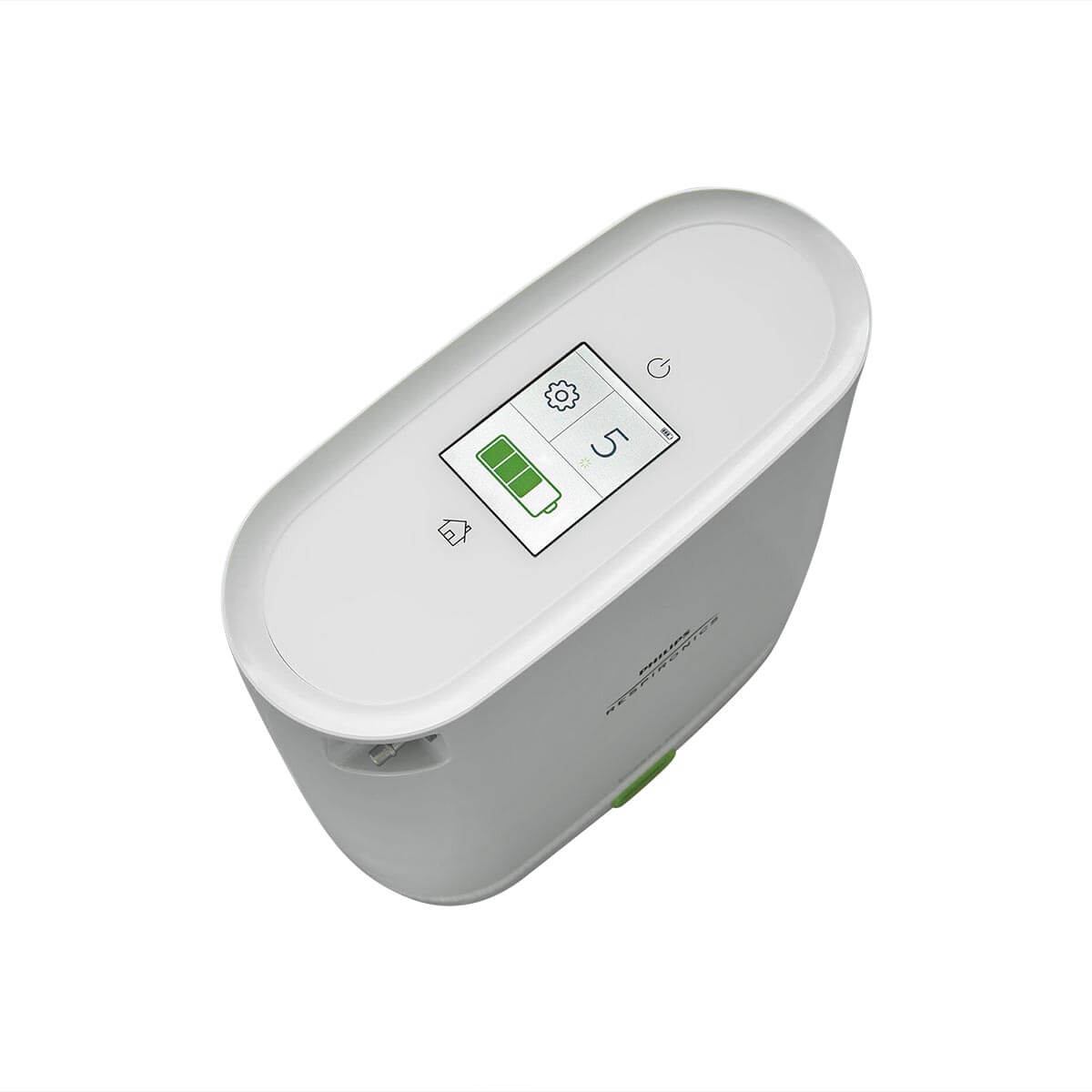

Color Touch Screen LCD
Powers 4.5 hours on setting 2 and with extended battery 9 hours on setting 2

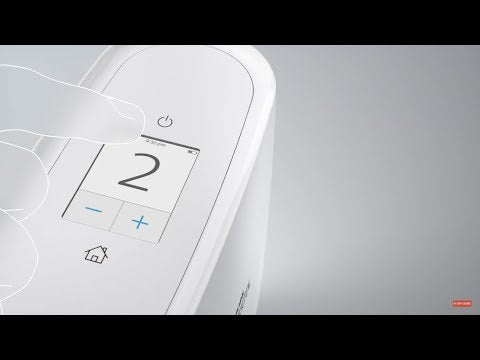

Flow Settings & Nominal Pulse Volumes at 20 BPM

Pulse Dose Flow Settings 1 to 5
Setting 1 = 11ml NPV with 220 ml/min maximum output
Setting 2 = 22ml NPV with 440 ml/min maximum output
Setting 3 = 33ml NPV with 660 ml/min maximum output
Setting 4 = 44ml NPV with 880 ml/min maximum output
Setting 5 = 50ml NPV with 1000 ml/min maximum output

TIPS ON SAFETY PREVENTION

Never utilize a Portable Oxygen Concentrator when the contraption itself is in the storage compartment of your auto.
Start the auto before turning on the unit or charging it.
Do not leave the SimplyGo Mini device in a vehicle but rather bring the unit with you.
If the unit has been in a cold or icy domain, permit it to warm up before utilization.
Do not permit bays or outlets of the unit to be obstructed whenever. Utilize just a maker's or producer-affirmed carrying case when traveling.

Note: The Philips SimplyGo Mini POC is now FAA-approved.

Specifications:

Oxygen Concentration At least 87% at all settings (Maximum of 96%)
Outlet Pressure 20 psig
Sound Levels 43 dBA typical at Setting 2
46 dBA typical at setting 5
Altitude Up to 10,000 Feet
9.4 x 8.3 x 3.6 Inches with Standard Battery
10.2 x 8.3 x 2.6 Inches with an Extended Battery
Weight 5 Lbs with Standard Battery
6 Lbs with Extended Battery
Interface Touch Screen LCD
Input 100 to 240 VAC, 50/60 Hz
Output 19 VDC, 6.3 A max
Consumption of 120 W while charging
Input 12 - 16 VDC
Output 19 +/- 5% VDC, 6.3 A
Chemistry Lithium Ion 14.4 VDC (nominal)
Options Standard & Extended (equal to two standards)
Dimensions Standard = 7.9 x 3.6 x 1.0 Inches
Extended = 7.9 x 3.6 x 1.9 Inches
Weight (Standard Battery) = 1.1 Lbs
Weight (Extended Battery) = 2.1 Lbs
Run Time Standard = Average 4.5 Hours at a setting of 2 at 20 BPM
Extended = Average 9.0 Hours at a setting of 2 at 20 BPM
Filters:

External: None Required
Internal: Bacterial filter designed to last the life of the concentrator

Battery Duration (at setting 2, 20BPM)

	Standard Battery (Maximum Run Time)	Extended Battery (Maximum Run Time)
Setting 1	6 hours	12 hours
Setting 2	4.5 hours	9 hours
Setting 3	3 hours	6 hours
Setting 4	2.25 hours	4.5 hours
Setting 5	2 hours	4 hours

Note: Battery duration is affected by battery age, environmental operating condition of the battery and SimplyGo Mini concentrator.

Note:

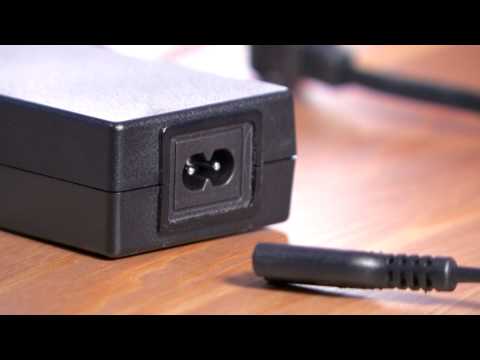

All SimplyGo Mini Portable Oxygen Concentrators manufactured before 12/15/2021 will only be compatible with the original AC adapter (part #1116818).
All SimplyGo Mini manufactured after 12/15/2021 will use the new AC Adapter (1141780) - which is currently out of stock.
The newer SimplyGo Mini is not compatible with the original AC adapter (#1116818).
